HERMETICALLY SEALED DOORS
.jpeg/:/cr=t:12.5%25,l:0%25,w:100%25,h:75%25/rs=w:1209,h:605,cg:true)
ABOUT

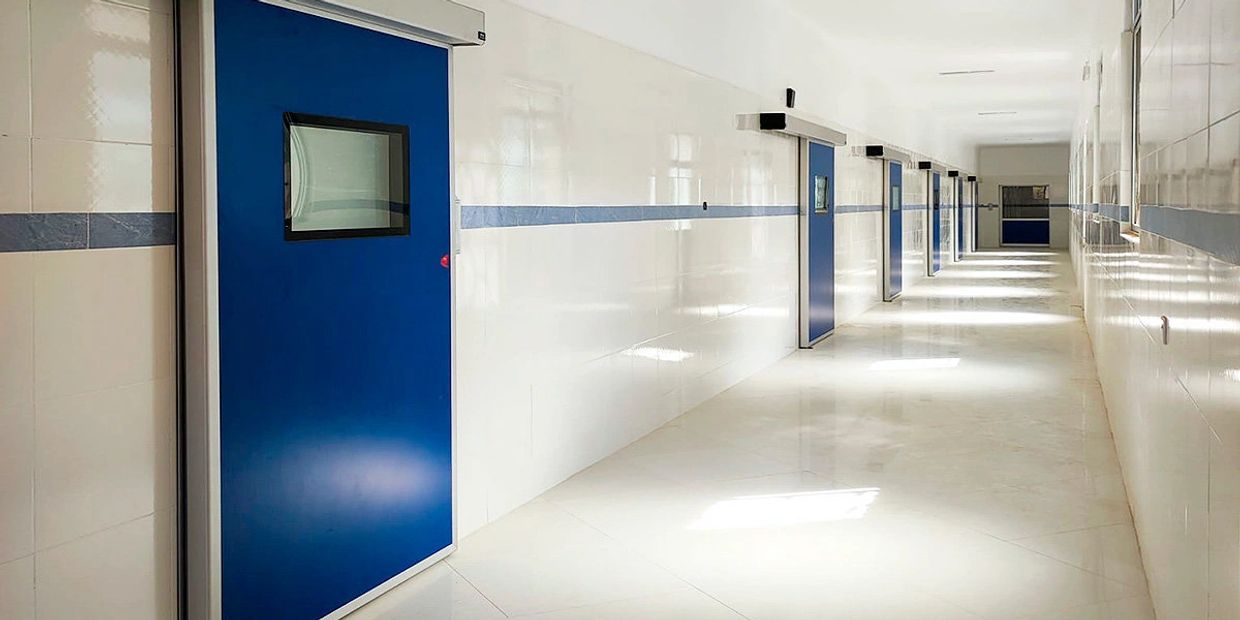

The hermetically sealing sliding Door Automation has been designed for use in pharmaceutical facilities and cleanrooms. In sectors with strict hermeticity and hygiene requirements, where there are rooms that have been specially designed to maintain low levels of contamination and controlled environmental conditions. Usually, this is the case in hospitals, the pharmaceutical industry, the food handling industry, the chemical industry, etc.
Hermetic automatic doors are especially suitable for: the pharmaceutical industry, recording rooms, sound-insulated environments, electronics laboratories, analysis laboratories, (pharmaceutical and/or chemical sector) applications on ships applications with heavy wings
Hospital/healthcare environments- operating theatres radiology rooms clean rooms controlled atmosphere environments (hospitals, clinics, rehabilitation centers, care homes, disabled centers, rest homes, multi-purpose surgeries, doctors’ surgeries, dentists’ surgeries)
Other sectors pharmaceutical industry, recording rooms, and sound-insulated environments, electronics laboratories, analysis laboratories, (pharmaceutical and/or chemical sector) applications on ships applications with heavy wings
PRODUCT FEATURES
1. Built-in type operator, the operator, and the door are built into the wall to keep at the same level as the wall.
2. Adopting OWNIC exclusive high-tech patents, its hermetic performance passed the highest grade 4 according to the TUV EN12207 standard.
3. With a lever handle to reduce the manual open force when the power is down.
4. Running quietly and smoothly, with excellent sound insulation performance.
5. Barrier-free design provides maximum convenience and safety to the patients.
6. Control system is designed by the safety requirements of the medical electrical system and its multiform control modes could be adopted according to the hospital’s requirements.
THE UTMOST BENEFITS OF ADVANCED TECHNOLOGY
VALOR HS is an automation system for doors with hermetic vertical closure and semi-hermetic horizontal closure: the wing provides a partial seal, abutting on the uprights of the frame and touching the crosspiece of the floor.
Super silent operation
All versions feature super silent operation, thanks to the anti-vibration seals, making them ideal for environments where comfort, silence, and a warm welcome are indispensable and fundamental requirements.
Maximum hygiene
The rounded guard and the screwless visible heads prevent dust from building up, making cleaning easy. Electrostatic energy that may have accumulated on the moving wings is permanently discharged, thus avoiding the build-up of dust too. Automatic doors must guarantee freedom of movement in absolute hygiene and safety both for patients and healthcare workers, without coming into manual contact with the actual doors.
The entire range accommodates these needs fully.
Maximum safety
The motion detectors can be built into the automation and concealed. Consequently, they prevent the classic build-up of dust on elements outside the guard.
They also ensure protection not only in the doorway but also in the side-opening movement of the wings, preventing accidental impact with unforeseen obstacles. They are indispensable when stretchers and wheelchairs are passing and may not be detected by traditional photocells.
Main functions: Hospital doors gates & Door Automation
- Electronic adjustment of the forces.
- An obstacle detection system (ODS): causes the maneuver to stop or reverse if an obstacle is detected.
- Automatic braking and deceleration setting.
- Independent opening, partial opening, and closure control.
- Adjustment of thrust forces exerted against obstacles.
- Separate speed adjustment for opening and closing.
- Separate time adjustments for automatic closing and partial opening.
- Side safety sensor adjustment: if an obstacle is detected, the electronic panel can be set to stop or slow down the opening.
